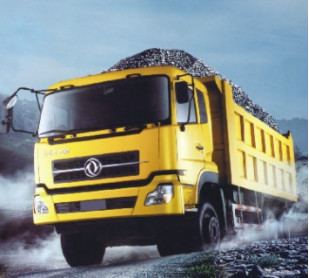

Dump Truck 6*4 Cummins engine 35-40 tons RHD LHD emission 3

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Name: Dump Truck 64 Cummins engine 3540 tons RHD LHD emission 3
Brand: Dongfeng
Price: 42920 USD

Brand Name : Dongfeng

Model Number : DFL3251A

Place of Origin : China

MOQ : 1 unit

Price : USD42920/unit

Payment Terms : T/T

Delivery Time : 30 working days

Packaging Details : in container

dimension : 8200×2500×3200 mm

wheelbase : 3800+1350 mm

power : 340hp

tire : 12R22.5

emission : Euro 3

Contact Now

Dongfeng Dump Truck 6*4 Cummins engine

Dump Truck 6*4 Cummins engine 35-40 tons RHD LHD emission 3

Drive mode	6×4
Engine	Model	Cummins L340 30
	Type	6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
	Max. power(Kw/rpm)	250/2200
	Max. torque(N.m/rpm)	1350/1400
	Displacement(ml)	8900
	Type of fuel	Diesel
	Compression ratio	(16.6±0.5):1
Cab	D310-S1	Single berth
Cab	Capacity	3 persons
Gearbox	Type	Fast 9gears
Gearbox	Max. torque(N.m)	1490
Clutch	Φ430mm	diaphragm spring clutch
Frame Height×Width× Thickness(mm)	300×90×(8+6)
Frame Height×Width× Thickness(mm)	Frame width 940 (front ), Frame width 800 ( rear )
No of Spring leaves	9/10
Tyre	Size	11.00R20
Air conditioner	A/C
Dimensions	Overalldimension (mm)	8200×2500×3200
	Inner dimension (mm)	5400×2300×1500
	Wheel base (mm)	3800+1350
	Front/Rear tread(mm)	2027,2040 / 1820/1820,1850/1850
	App./Dep. angel (°)	30/30,30/25
Performance	Max. speed(km/h)	85
Mass	Payload (Kg)	40,800
	Curb weight(Kg)	11,500
	G.V.W (Kg)	45,300
